Retarder for High Temperature Oil Well Cementing

Product Description :

GH-9S dissolves in water quickly owing to its strong hydrophilic property. It can absorb on the surfaces of the cement slurry hydrate to inhibit contact with water and chelate with Ca2+ to prevent crystal nucleus forming early. Therefore, it can retard thickening time. And it can enhance the last strength of the cement stone because C3A shows weak adsorption performance.

Get Price Get Price Contact

Performance Characteristics :

GH-9S consists of sulfonate and organic salts.

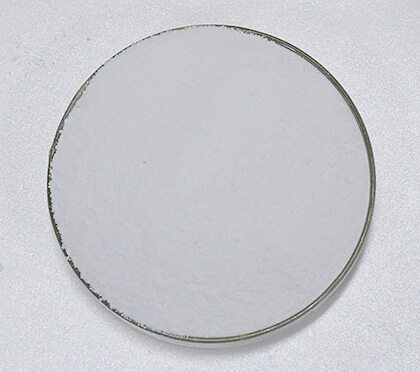

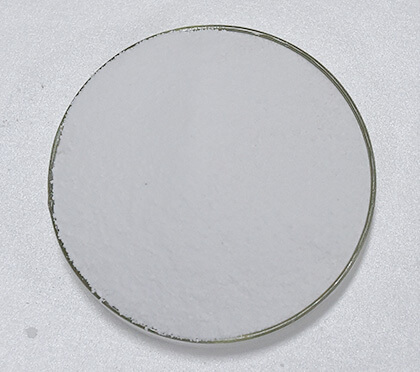

Appearance: White particles

Normal dosage: 0.1% ~ 1.0% ( BWOC ).

Suitable temperature: 60℃ ~ 180℃ ( BHCT ).

It is used in the medium and deep well. It can prolong the thickening time effectively and increase the pumped time. It can formulate a right angle thickening cement slurry system.

If there is the a settlement phenomenon happened to the cement slurry because of its strong dispersion performance, the appropriate amount of G302 ( oil well cement fluid loss additive ) can be added to the cement slurry.

Technical indicators :

ItemsSpecification
AppearanceWhite particles
Water content, %≤ 8.0
Fineness ( 0.315mm sieve residue ), %≤ 10.0
Thickening timeAdjustable
Initial consistency , Bc / 120℃, 73.9MPa, 61min≤ 30.0
Transition time, min≤ 40.0
Mutation value of thickening curve, Bc≤ 10.0
Free liquid, %≤ 1.4
Compression strength, MPa / 144℃, 21MPa, 48h≥ 14.0



The ingredient of cement slurry in the table is: JiaHua G class cement: 594g + silica sand 208g ( 160~200 mesh ) + distilled water 333g + GH-9S: 0.9% + G401: 1.2%

Packaging, storage and transportation ：

Be sacked with three-layer plastics bag, 25kg per bag.

Be kept away from moisture, Stored in cool and dry situation.

Storage life time is two years.
